ALLSCREEN Manual projection screen 180X180CM HD Fabric CWP-7272

Weight: 8

SKU: CWP-7272

Categories: Manual Projection Screens

Description

Manual screen features

Screen series Manual series
Outer casing Factory Default:Pearl White Square outer casing.(Black and Octagon outer casing can be optional)
Fabric material Qualified Matte White,HD Fabric,High Gain Glass Beaded,HD Fiber Glass.
Gain 1.1-2.3
Viewing angle 100°(60°L&R)
Product Features

◆  Adopt unique square outer casing,easy to install in the ceiling and on the wall,simple and elegant;

◆  Adopt the environmental materials,no odor and healthy;

◆  Adopt unique self-lock system,can be stopped at any position;

◆  Adopt Unique HD materials,Color reduction effect is perfect,give you high definition display;

◆  Standard quadrilateral black border processing, effectively absorb radiation light projector;

◆  Support 3D and 4K ultra-precision imaging,Enjoy the incomparable lifelike image quality excellence;

◆  Widely used in home,classroom,meeting room and commercial use,etc.

◆  Large viewing angle.

Size From 60"-150",format 1:1,4:3,16:9,16:10,2.35:1. etc.;
Installment In the ceiling or on the wall,
Warranty All the products are supplied 14 months warranty and lifelong time maintain.

Manual screen specification

FORMAT 1:1
PROJECTION SCREEN SIZE 180 X 180 CM
VIEWING DEGREE 120°
WEIGHT 8.0 KG
G.W.  9.20 KG



Square manual screen specification:

Octagon casing manual screen speicification:

Note:The datas are only for reference,the actual data will be subject to measurement.

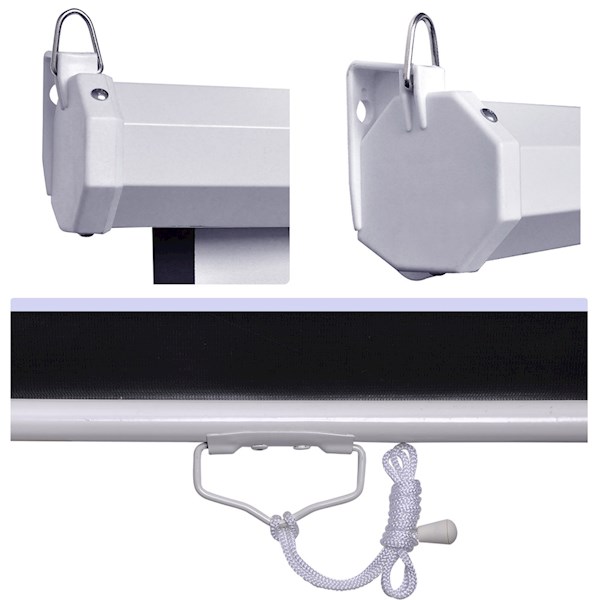

Manual screen details



Manual screen fabric:

Common fabric

Gain Thickness Viewing angle structure Clean inflaming retarding mould proof antistatic Working Temperature
Matte White 1.1 0.38mm±10% 100°(L&R50°) PVC film+Warp knitting+PVC film Yes Yes Yes Yes -20℃-+60℃
HD fabric 1.1 0.42mm±10% 100°(L&R50°) PVC film+Woven Fabric+ PVC film Yes Yes Yes Yes -20℃-+60℃
PET fabric 0.86 0.32mm±10% 100°(L&R50°) PVC film+PET Fabric+ PVC film Yes Yes Yes Yes -20℃-+60℃
