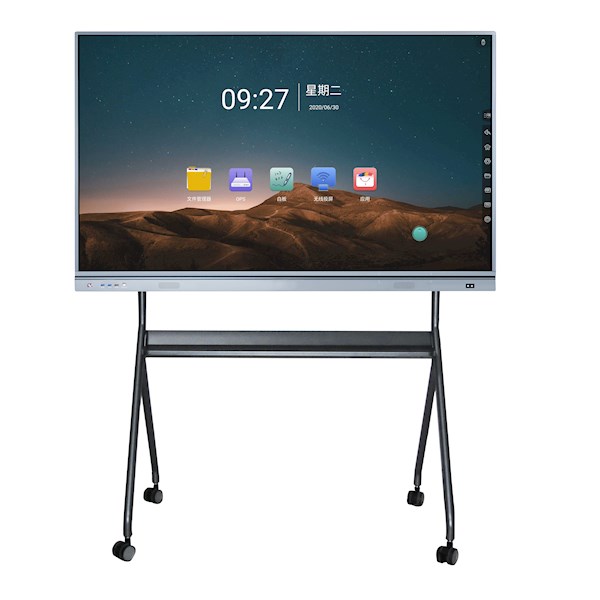

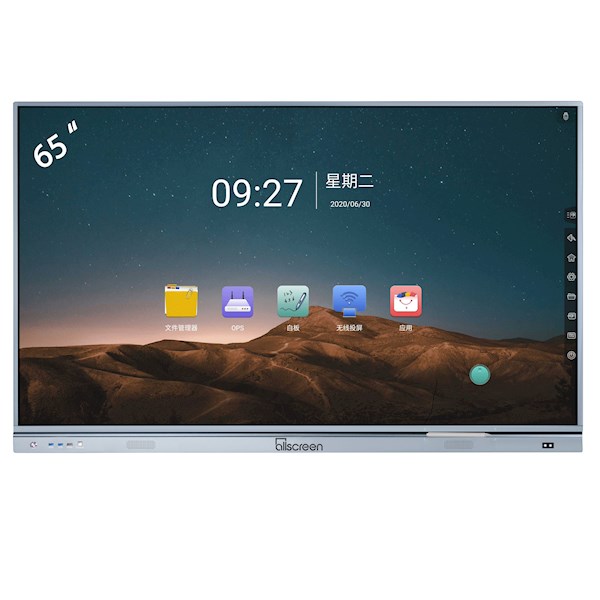

Allscreen Q SERIES Interactive Flat Panel 65 Inch 4K Android 9.0 DW65HQ560 20 Touch Point Smart Board

Weight: 45

SKU: DW65HQ560

Categories: Interactive Flat Panels


Display Parameter Diagonal Size 65inch (DW65HQ560)
Effective Display Area 1428.48(H)*803.52(V)
Display Ratio 16:9
Brightness 350cd/㎡
Contrast Ratio 4000:1
Backlight Type DLED
Viewing Angle 178°(V)/178°(H)
Resolution 4K Ultra-HD (3840 x 2160)
Audio Output Power 8Ω/15W*2

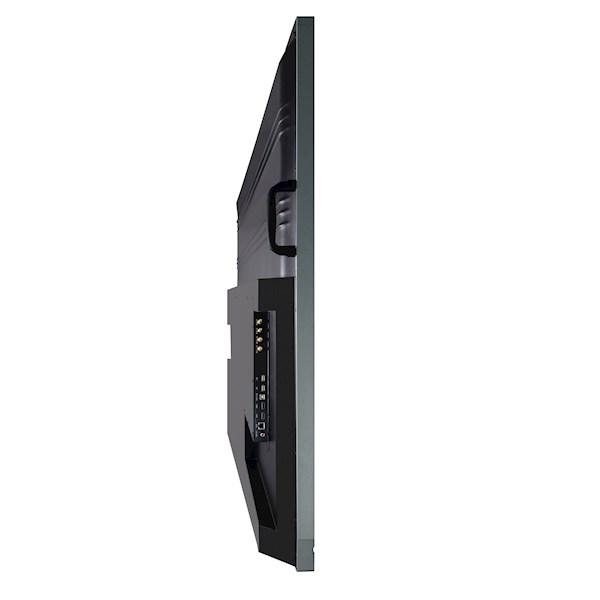

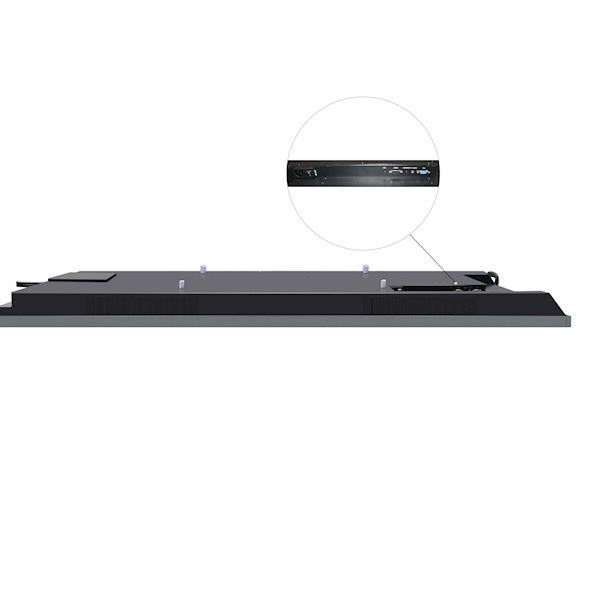

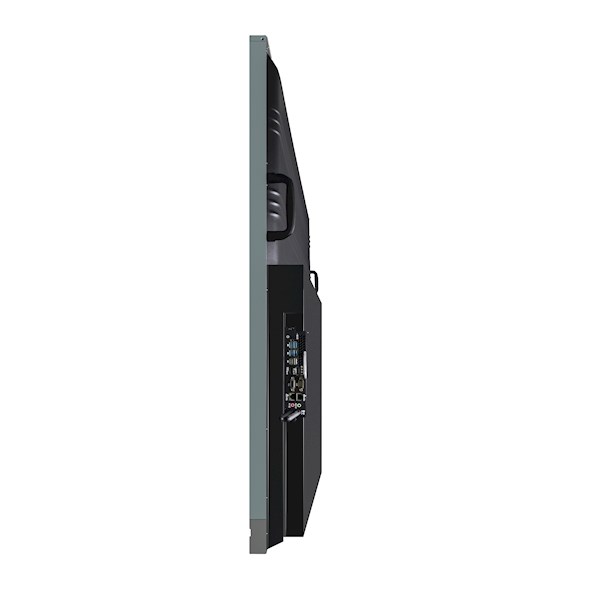

Back port Input USB 2.0 2
RJ45 1
HDMI 2.0 2
Mic 1
VGA Audio 1
RS232 1
coaxial(RCA) 1
Audio Out 1
Fron Panel Port USB2.0(Android & Windows USB3.0) 2
HDMI 2.0 1
Front button Power Button
   PC PC Option H81 Mainboard
Android Specs Android Frequency Quad-core A55 1.5GHz
System Version Android 9.0
Memory DDR4 3 GB
2.4GWIFI Wifi*2
5GWIFI Wifi*2
Others Power consumption ≤240W
Standby consumption ≤0.5W
Lifetime 50000 hours
power supply 100-240V, 50/60Hz
Demission 1486*913.2*93.64mm
Net Weight 43kg
Gross Weight 52kg
package size 1610*1030*215mm
Touch screen Touch technology Multiple Infrared scanning technology
Touch type 20 point touch
Drive Mode HID Free drive
Writing surface material 5 mm anti glare tempered glass
Touch Screen Sensor Mode Finger, writing pen, hand with gloves or other non transparent touch sensitive medium
Resolution of touch screen 32767X32767
Communication Port USB 2.0
Minimum Recognition Point Size 2.5mm
ResponseTime (SingleTouch) ≤8ms
Touch Accuracy ±1mm
Anti-Interference Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 90000Lux
Calibration Calibration free
Touch Time More than 60 million times in the same position
Touch Power supply Mode USB 5.0V power supply
Accessories Wall-Mount 1pcs
Pen 2pcs
Manual 1pcs
power cable 1pcs
Remote control 1pcs
