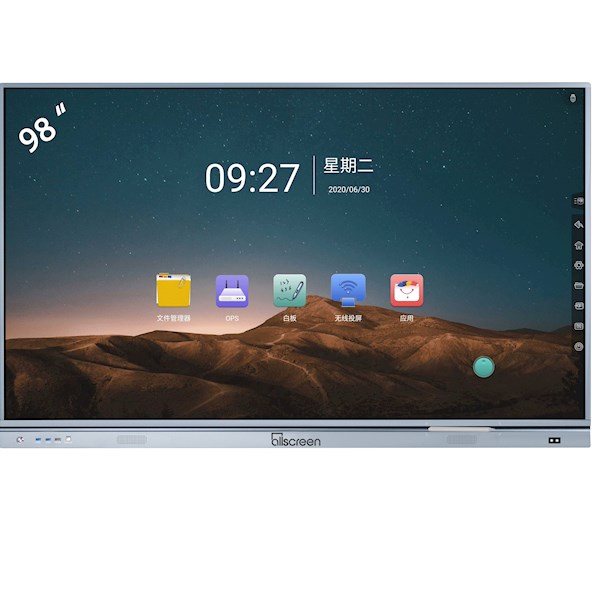

ALLSCREEN Q SERIES INTERACTIVE FLAT PANEL 98 INCH 4K ANDROID 9.0 DW98HQ560 20 TOUCH POINT SMART BOARD

Weight: 200

SKU: DW98HQ560

Categories: Interactive Flat Panels

Description

Display Parameter Diagonal Size 98inch
Effective Display Area 2158.85(H)*1214.35(V)
Display Ratio 16:9
Brightness 350cd/㎡
Contrast Ratio 1200:1
Backlight Type DLED
Viewing Angle 178°(V)/178°(H)
Resolution 3840(H) X 2160(V)
Audio Output Power 8Ω/15W*2

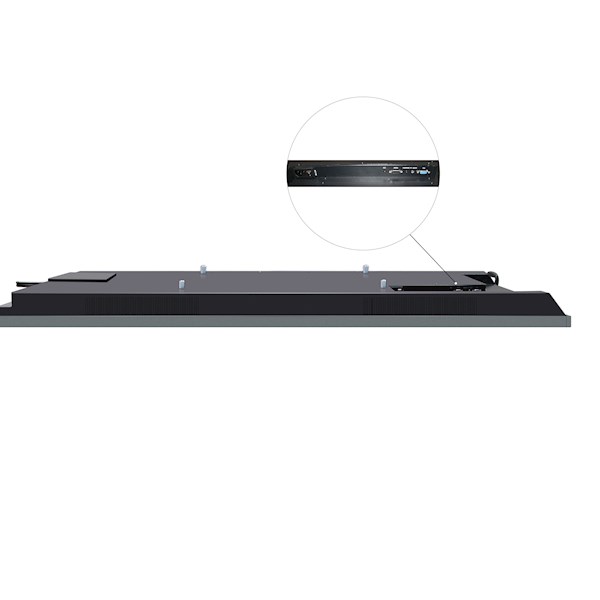

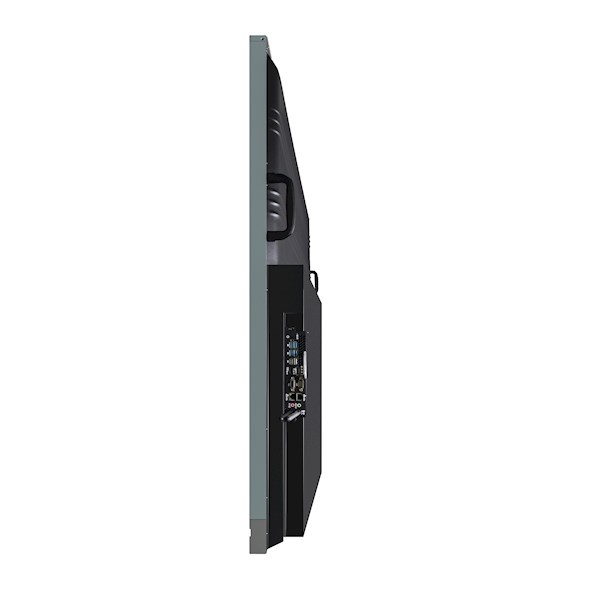

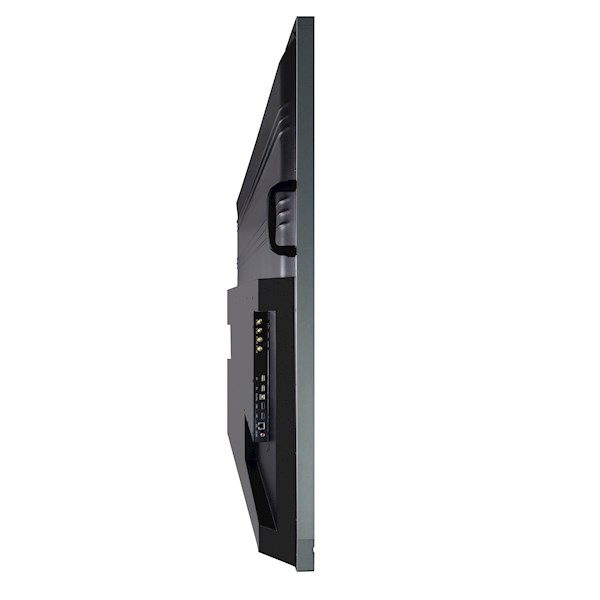

Back port Input USB 2.0 2
RJ45 1
HDMI 2.0 2
Mic 1
VGA 1
VGA Audio 1
RS232 1
OUT USB TOUCH 1
coaxial(RCA) 1
Earphone 1

Front port USB2.0(Android & Windows USB3.0) 2
HDMI 2.0 1
USB TOUCH 1
Front button Power Button
   PC PC Option H81 Mainboard

Android Specs Android Frequency Quad-core A55 1.5GHz
System Version Android 9.0
Memory DDR4 3G
FLASH 32G
2.4GWIFI Wifi*2
5GWIFI Wifi*2

Others Power consumption ≤460W
Standby consumption ≤0.5W
Lifetime 50000 hours
power supply 100-240V, 50/60Hz
Demission 2230.2*1348.6*124.94mm
Net Weight 142kg
Gross Weight 200kg
package size 2520*1670*460mm

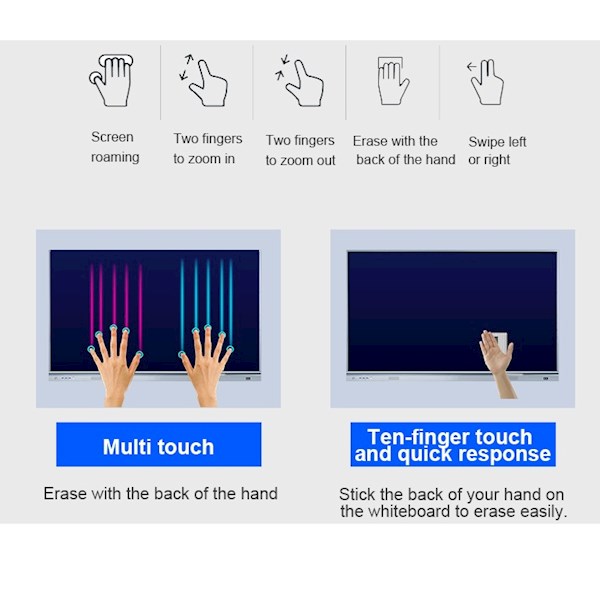

Touch screen Touch technology Multiple Infrared scanning technology
Touch type 20 point touch
Drive Mode HID Free drive
Writing surface material 5 mm anti glare tempered glass
Touch Screen Sensor Mode Finger, writing pen, hand with gloves or other non transparent touch sensitive medium
Resolution of touch screen 32767X32767
Communication Port USB 2.0
Minimum Recognition Point Size 2.5mm
ResponseTime (SingleTouch) ≤8ms
Touch Accuracy ±1mm
Anti-Interference Incandescent lamp (220V, 100W), vertical distance 350mm above, The illumination intensity of the sun is up to 90000Lux
Calibration Calibration free
Touch Time More than 60 million times in the same position
Touch Power supply Mode USB 5.0V power supply
Accessories Wall-Mount 1pcs
Pen 2pcs
Manual 1pcs
power cable 1pcs
Remote control 1pcs
